OTTOBOCK

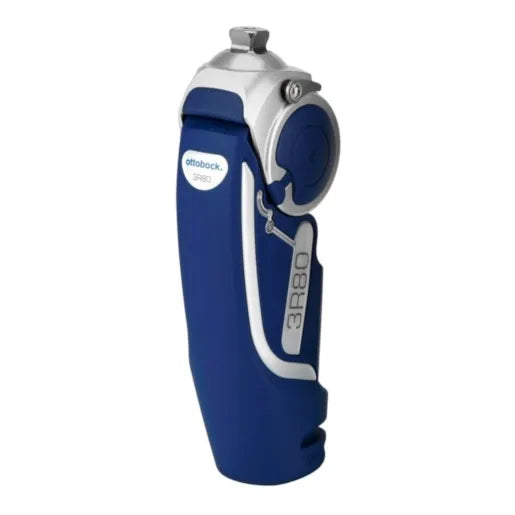

KNEE- MODULAR KNEE JOINT WITH ROTARY HYDRAULIC WATERPROOF 3R80/TOI

KNEE- MODULAR KNEE JOINT WITH ROTARY HYDRAULIC WATERPROOF 3R80/TOI

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

KNEE- MODULAR KNEE JOINT WITH ROTARY HYDRAULIC WATERPROOF.

  • The new generation 3R80 features a manual lock, waterproof design, and an option of a pyramid version as well as a screw top version.
  • The wearer has confidence in the knee as it offers rotary hydraulics to control stance and swing phase.
  • The rotary hydraulics of the 3R80 respond to the ground reaction forces in the stance phase at every step - high hydraulic resistance prevents involuntary flexion of the joint.
  • The knee is approved for a maximum weight of up to 330lbs/150kg.
  • The level of resistance in stance phase can be adapted to the requirements of the user, and enables unlimited knee flexion under load.
  • The manual lock allows for safety and comfort, such as during long periods of standing or walking in water.
  • The user can easily activate/deactivate the lock by pushing a small lateral lever down/up while the prosthesis is loaded on the forefoot.
  • Manufacturer Recommended HCPCS: L5828, L5845, L5850, L5930, L5925. Medicare covers L5930 for K4 only1.

Specifications:

  • Activity Level K3, K4
  • Maximum Body Weight 330 lbs (150 kg)
  • Material Aluminum
  • Proximal Connection Pyramid Adapter
  • Distal Connection Tube Clamp (34 mm diameter)
  • Maximum Knee Flexion Angle 150 degrees
  • Knee Center to Proximal Connection 63 mm
  • Product Weight 1.240 g (2.73 lbs)
