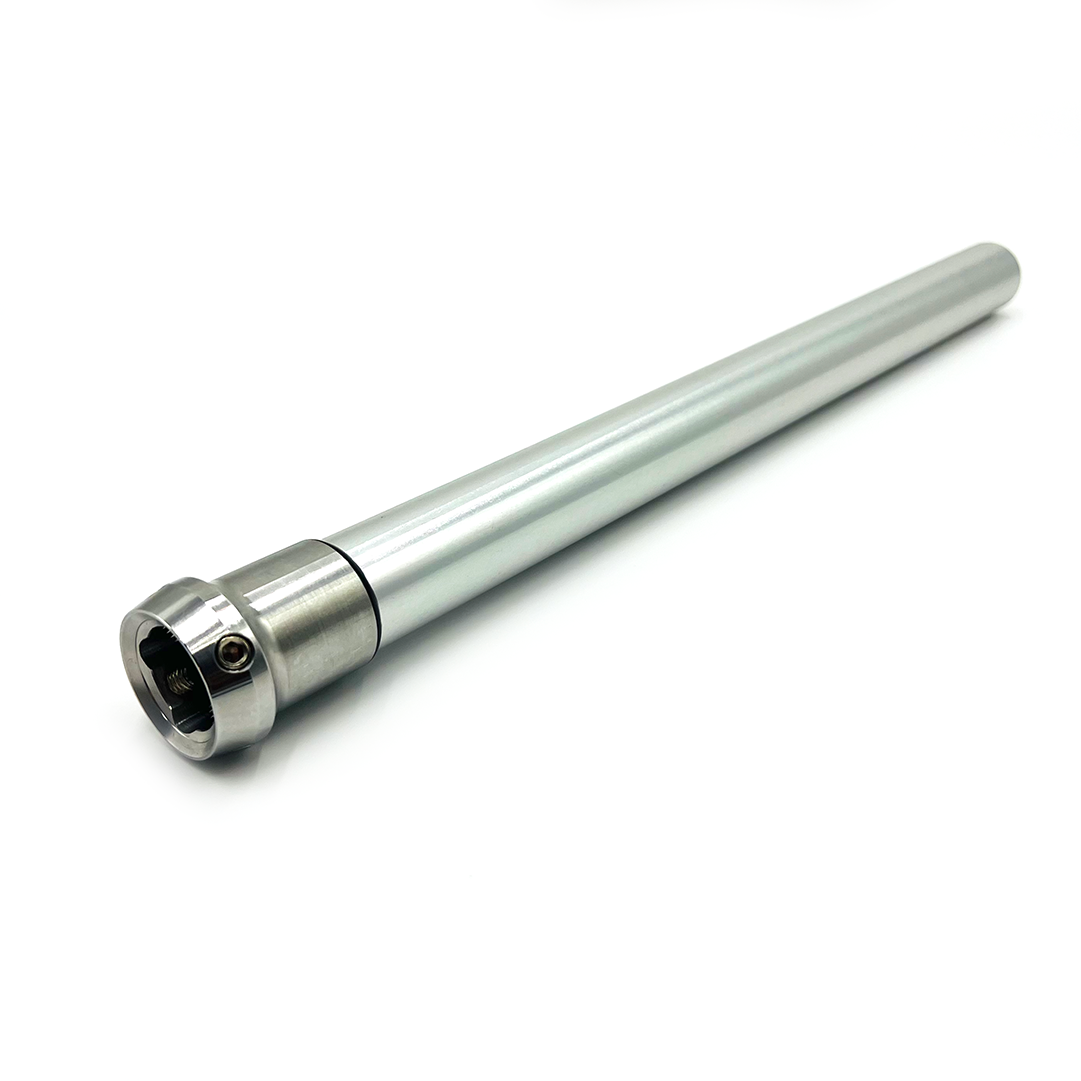

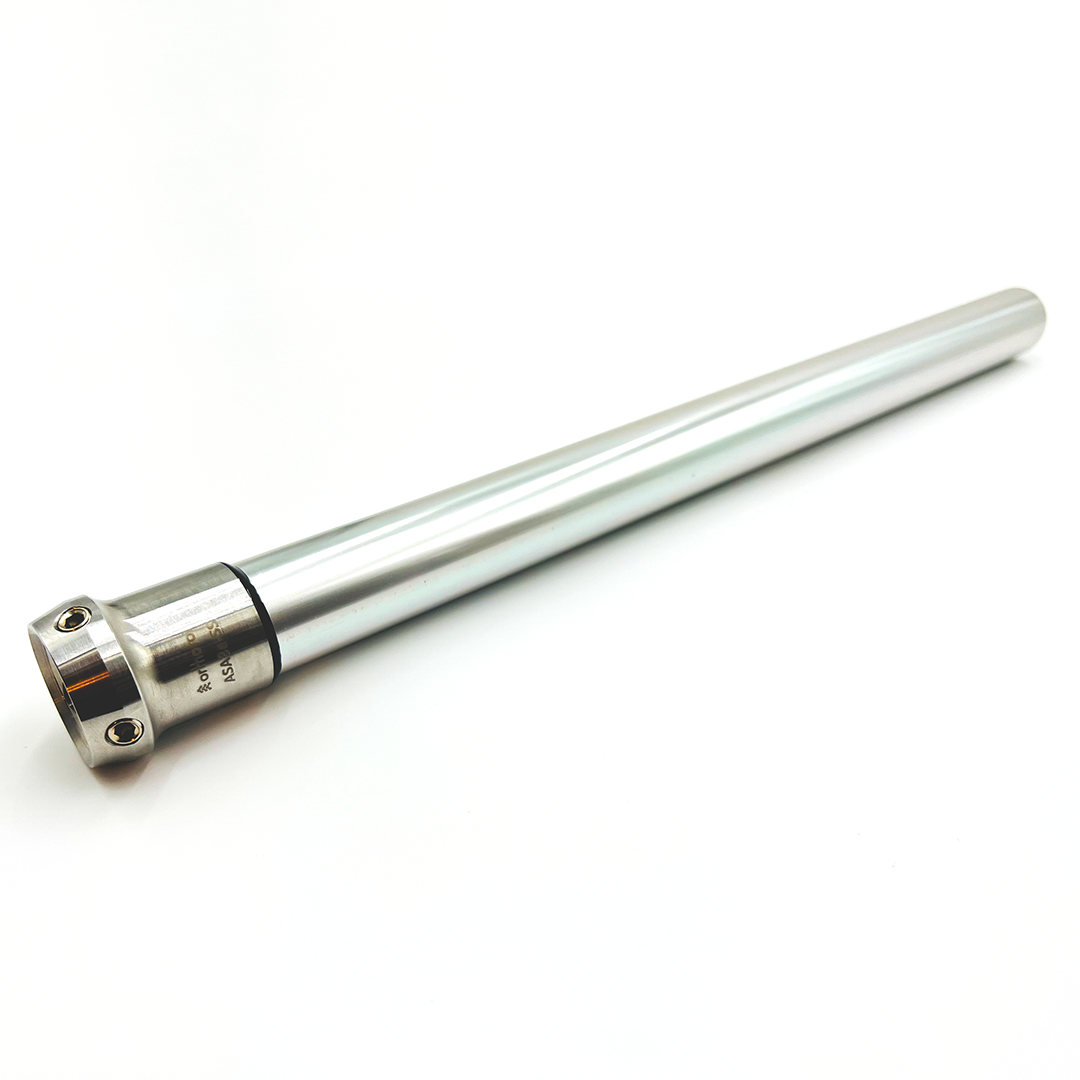

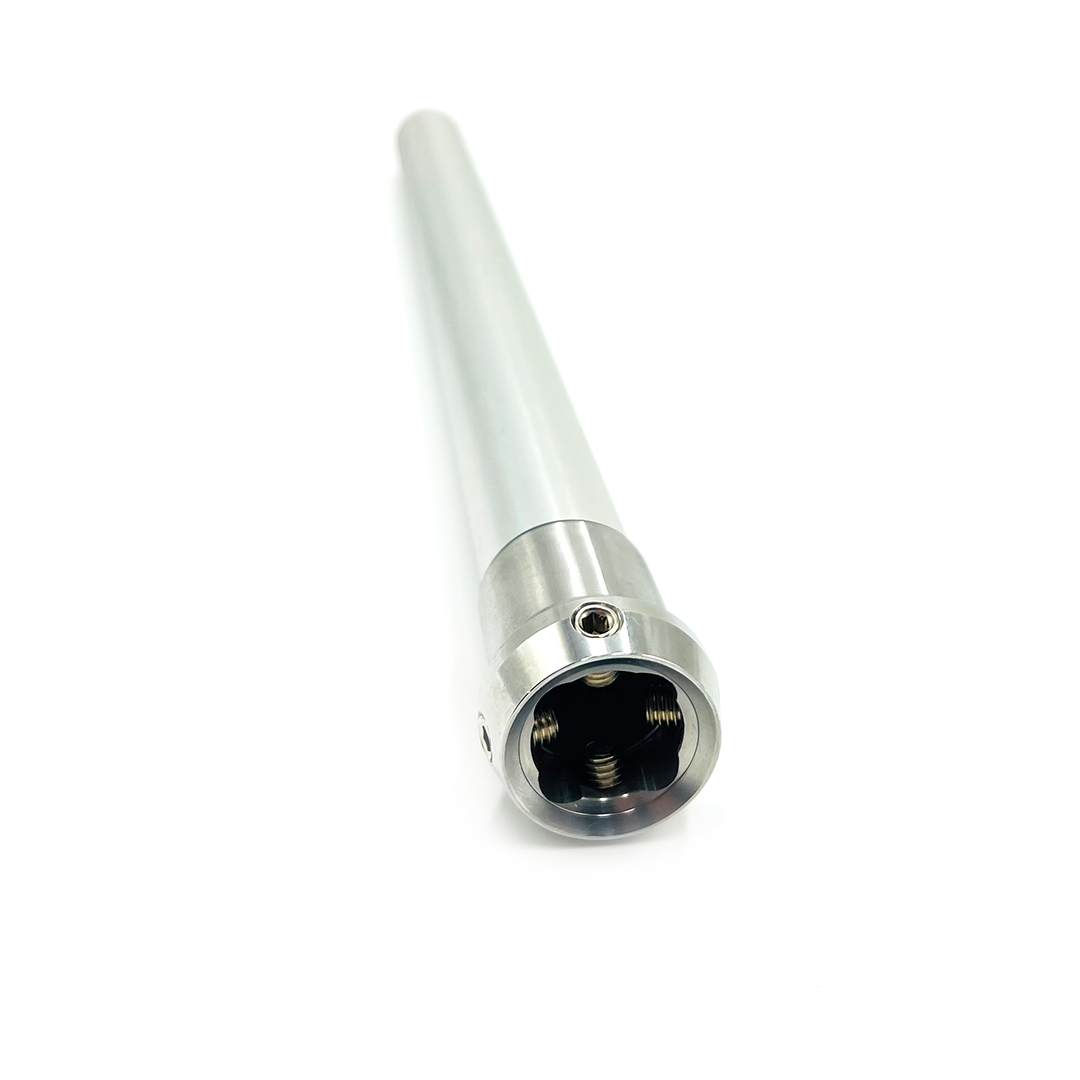

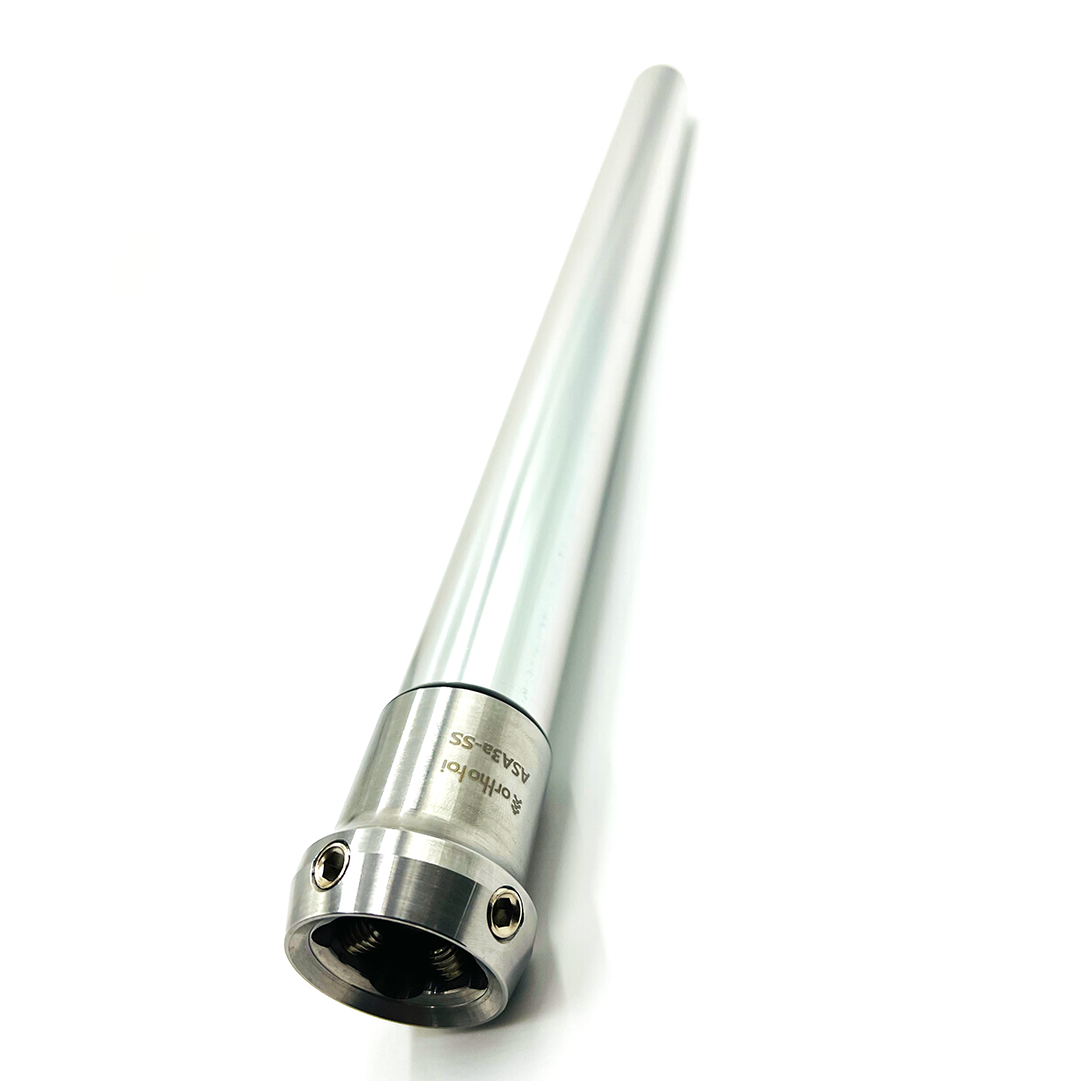

Tube or Pylon- Aluminum alloy with Stainless Steel Adapter 400mm long X 30mm diameter
Code: ASA3A-SS/TOI
Supplier: Orthotoi
Product description
Pylon material: Aluminum-17″ o 40cm long- 30mm diameter
Weight limit: 250 lb (113 kg)
Piece Weight: 12.50 oz , 0.7 Lb, 300gr
Includes: (4) fixing screws with M8x12 socket. Tightening torque 13-14 Nm
Instructions:
- Cut to desired height
- Remove the chip from the cut on the edge.
- Adapt and adjust the screws with the correct alignment
-Apply 243 bolt sealant on the screws.
